DS4000E
The DS6000 series digital oscilloscopes have a bandwidth of up to 1 GHz and a sampling rate of up to 5 GSa/s. They are high-performance general-purpose digital oscilloscopes with excellent waveform capture rate and memory depth among similar products.
Explore the DS8000-R series digital oscilloscopes
Up to 60,000 waveform capture rates
With a waveform capture rate of up to 60,000 wfms/s, the dead time can be reduced, making it easier to detect glitches and other sporadic events in the signal, thus greatly improving the debugging efficiency of engineers.
12-bit vertical resolution
12-bit resolution (212=4096) to see the most signal detail
Each channel has a sampling rate of up to 2GSa/s and a deep memory of 14Mpts.
All channels have a real-time sampling rate of up to 2 GSa/s and 14 Mpts of deep memory, allowing users to comprehensively take into account both the overall view and details of multiple waveforms without missing any waveform changes.
Real-time waveform recording, playback and analysis functions

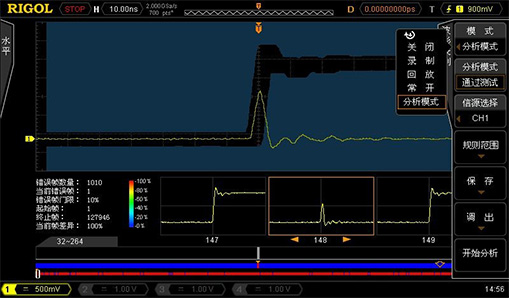

The real-time recording function implemented by hardware can record up to 127,000 frames of waveforms. The dedicated data analysis navigation knob allows for quick viewing of the recorded content, facilitating convenient playback, analysis, and comparison of waveforms to identify faults.
Serial bus triggering and decoding functions

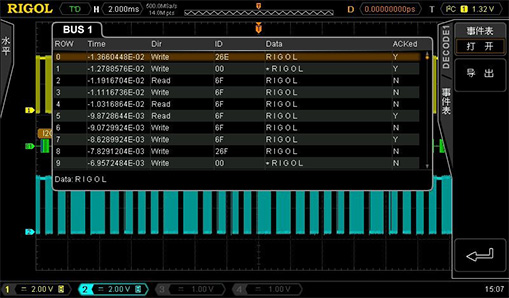

The standard configuration or adding options support the trigger and decoding functions of I2C, SPI, RS232/UART, CAN, LIN, and FlexRay buses.
Standard waveform template testing function

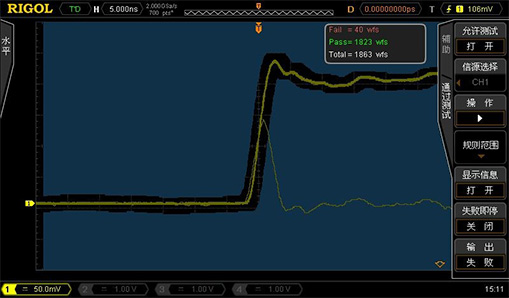

The standard configuration provides a template testing function, with Pass/Fail statistics, error reporting stop and alarm functions, which is convenient for production line testing and long-term monitoring applications.
DS4000E
|
Model
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Price
|
|---|---|---|---|---|---|---|
|
DS4014E
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
|
|
DS4024E
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Passive probe
|
Model
|
Description
|
Price
|
Downloads
|
