DS70000
The new DS70000 Series is available in either 3 or 5 GHz bandwidths and combines the new UltraVision III oscilloscope technology and UltraReal spectrum analysis technology into RIGOL’s most powerful test and measurement instrument ever.
Explore the DS70000 Series Oscilloscopes
Digital Oscilloscope with Real‐Time Spectrum Analysis to 5 GHz
Up to 5 GHz Bandwidth and 20 GSa/sec Sample Rate
Waveform Capture Rate

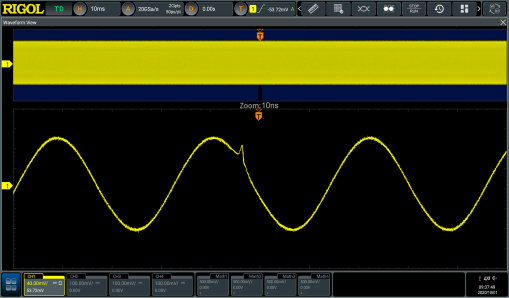

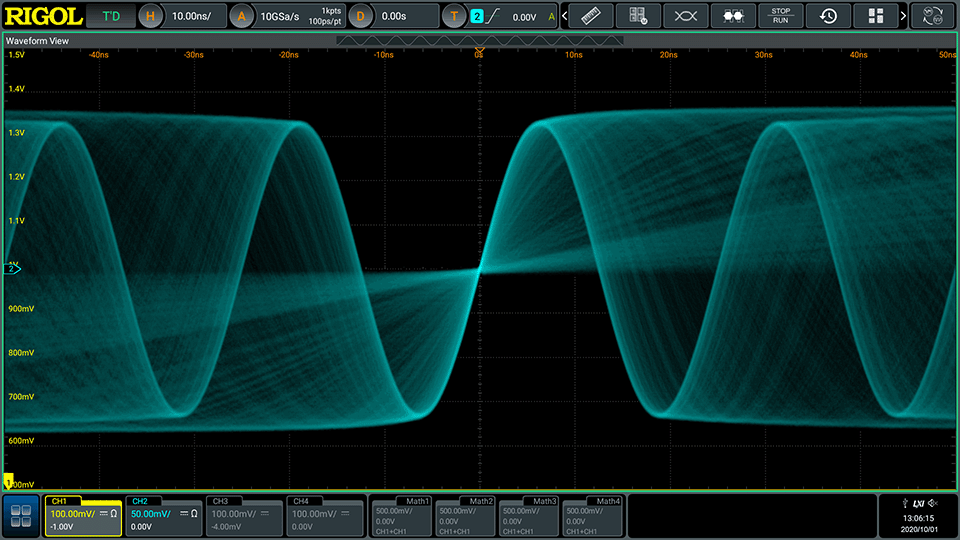

View infrequent anomalies and small signal details quickly and precisely with up to 1 Million waveforms visualized on the screen every second.
2 Billion Points of Memory
500 Mpts memory depth is standard and can be upgraded to 2 Gpts memory depth (Half-channel 1 Gpts) Full 100 millisecond capture at max sampling rate of 20 GSamples per second Capture half a Billion periods of a 5 GHz signal in one continuous data stream Memory can also be segmented to record up to 2 Million frames in record mode
16 bits Vertical Resolution

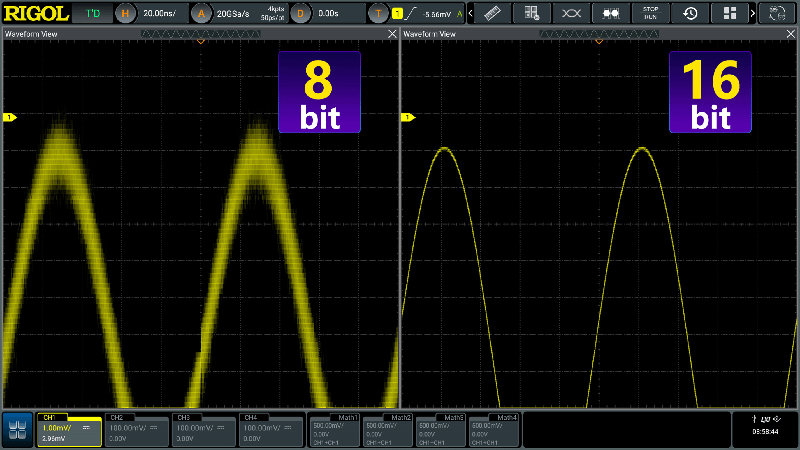

Up to 16 bit resolution High resolution mode: 9-16 bits Directly select the number of bits
Multiple Touchscreens for efficient visualization

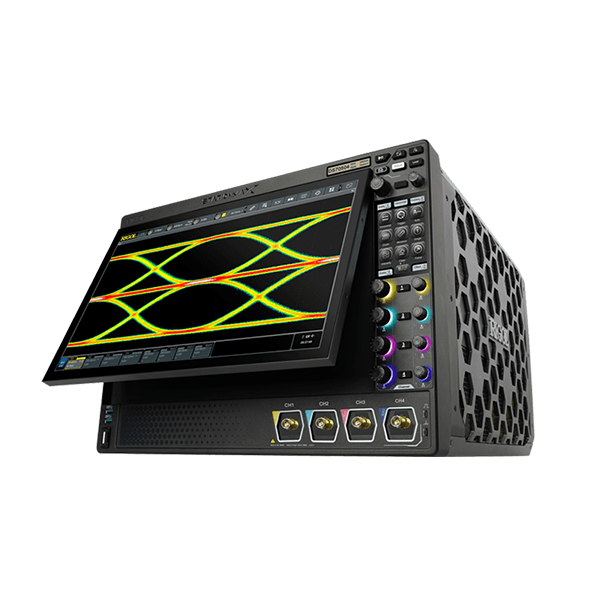

15.6” auto-tilt primary touchscreen display Secondary touchscreen reserves main screen for analysis
Multi Window User Interface

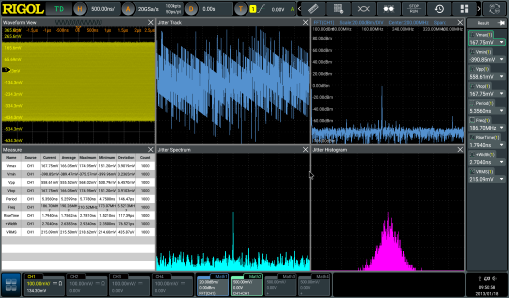

Analysis tools and functions open in separate windows that optimize scale and axis settings Measurements open in separate sidebar
DS70000
|
Model
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Price
|
|---|---|---|---|---|---|---|
|
DS70304
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
|
|
DS70504
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Optical isolation probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
PIA1100
|
1GHz optical isolation probe, standard with one 50x and one 2000x attenuator.
|
|
||
|
PIA1020
|
200MHz optical isolation probe, standard with one 20x attenuator.
|
|
||
|
PIA1050
|
500MHz optical isolation probe, standard with one 50x and one 2000x attenuator.
|
|
Passive probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
RP6150A
|
1.5GHzPassive low resistance probe（500ohm）
|
$
318(VAT excl.)
|
||
|
RP3500A
|
500MHzPassive high resistance probe
|
$
217(VAT excl.)
|
||
|
RP1300H
|
300MHzHigh voltage probe(2kV)
|
$
232(VAT excl.)
|
||
|
RP1018H
|
18kV 150MHzHigh voltage probe
|
$
985(VAT excl.)
|
Active probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
PVA8700
|
7GHzActive differential probe
|
|
||
|
RP7080S
|
800MHz Active single-ended probe
|
$
1042(VAT excl.)
|
||
|
RP7150
|
1.5GHzActive differential probe
|
$
4487(VAT excl.)
|
||
|
RP7150S
|
1.5GHz Active single-ended probe
|
$
2460(VAT excl.)
|
||
|
PVA8350
|
3.5GHzActive differential probe
|
|
||
|
PVA7250
|
2.5GHzActive differential probe
|
$
5256(VAT excl.)
|
||
|
RP7080
|
800MHzActive differential probe
|
$
2026(VAT excl.)
|
Current probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
RP1002C
|
1MHz，70ADC
|
$
1736(VAT excl.)
|
||
|
PCA1150
|
Current probe：10MHz，150A
|
$
5819(VAT excl.)
|
||
|
RP1001C
|
300KHz，100A DC
|
$
825(VAT excl.)
|
||
|
PCA2030
|
Current probe：100MHz，30A
|
$
6090(VAT excl.)
|
||
|
RP1004C
|
100MHz,30A
|
$
5049(VAT excl.)
|
||
|
RP1000P
|
4CHPower Adapter
|
$
1577(VAT excl.)
|
|
|
|
PCA1500
|
2MHz, 500A Current Probe
|
$
6490(VAT excl.)
|
||
|
RP1005C
|
10MHz,150A
|
$
4418(VAT excl.)
|
||
|
RP1006C
|
2MHz，500A
|
$
5490(VAT excl.)
|
||
|
PCA1030
|
Current probe：50MHz，30A
|
$
4865(VAT excl.)
|
||
|
RP1003C
|
50MHz,30A
|
$
3471(VAT excl.)
|
High-voltage differential probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
PHA2150
|
200MHz, 1500V High Voltage Differential Probe
|
$
1590(VAT excl.)
|
||
|
PHA1150
|
High voltage differential probe，DC-100MHz，1500V
|
$
999(VAT excl.)
|
||
|
PHA0150
|
High voltage differential probe，DC-70MHz，1500V
|
$
799(VAT excl.)
|
||
|
RP1100D
|
High Voltage Differential Probe，100MHz，3.5KV
|
$
753(VAT excl.)
|
||
|
RP1050D
|
High Voltage Differential Probe，50MHz，3.5KV
|
$
651(VAT excl.)
|
||
|
RP1025D
|
High Voltage Differential Probe,25MHz,700V
|
$
449(VAT excl.)
|
|
Model
|
Description
|
Price
|
|---|
|
Name
|
Version
|
Release time
|
|---|---|---|
DS70000 DataSheet
|
DSA29104-1110
|
2025-05-20
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DS70000 UserGuide
|
UGA29105-1110
|
2024-11-26
|
|
USB2.0-Fixture UserGuide
|
FGA28100-1110
|
2025-07-15
|
|
100&1000 Base-T1 Fixture AETH UserGuide
|
UGM03101-1110
|
2025-07-15
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
MSO7000&DS7000 QuickGuide
|
QGA29101-1110
|
2024-11-26
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DS70000 ProgrammingGuide
|
PGA29105-1110
|
2024-11-26
|
|
Name
|
Version
|
Release time
|
|---|---|---|
DS70000 Firmware
|
V00.06.01
|
2024-11-26
|
|
Name
|
Version
|
Release time
|
|---|---|---|
Ultra Sigma(HelpDocument)
|
V1.0
|
2024-01-25
|
|
Ultra Sigma patch file for Screenshot
|
V1.1
|
2024-01-25
|
|
Ultra Spectrum(PC)Installer
|
V00.01.06.01
|
2024-01-25
|
