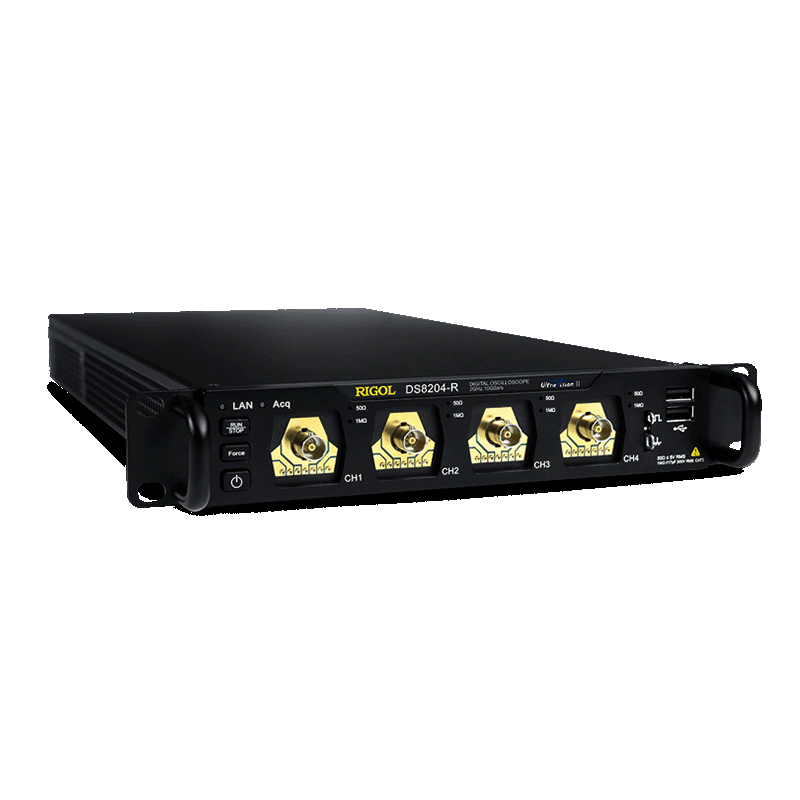

DS8000-R
DS8000-R series digital oscilloscope is a compact mid-to-high-end digital oscilloscope based on RIGOL's UltraVision II platform. With a compact design, DS8000-R supports multi-machine system integration, suitable for rack installation. It also allows remote control, and meet the standards of industrial automation test systems.
Explore the DS8000-R Series Digital Oscilloscopes

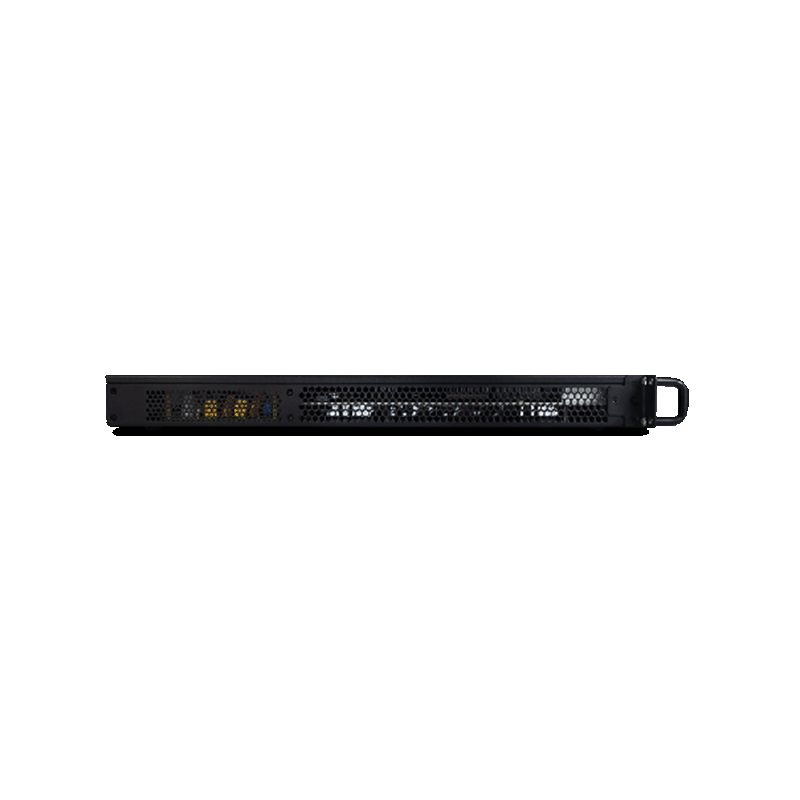

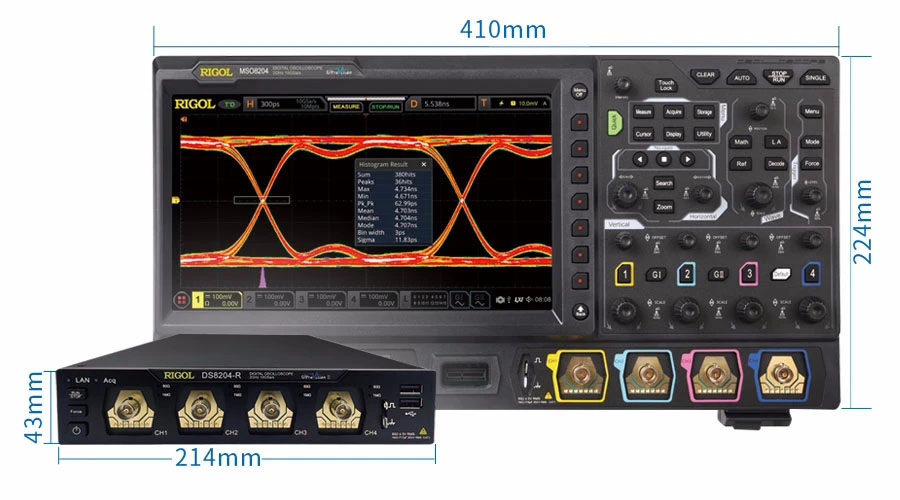

Compact design
Space-saving compact design, small size, 214 mm (width) × 43 mm (height) × 478 mm (depth), which can be placed in a narrow space.

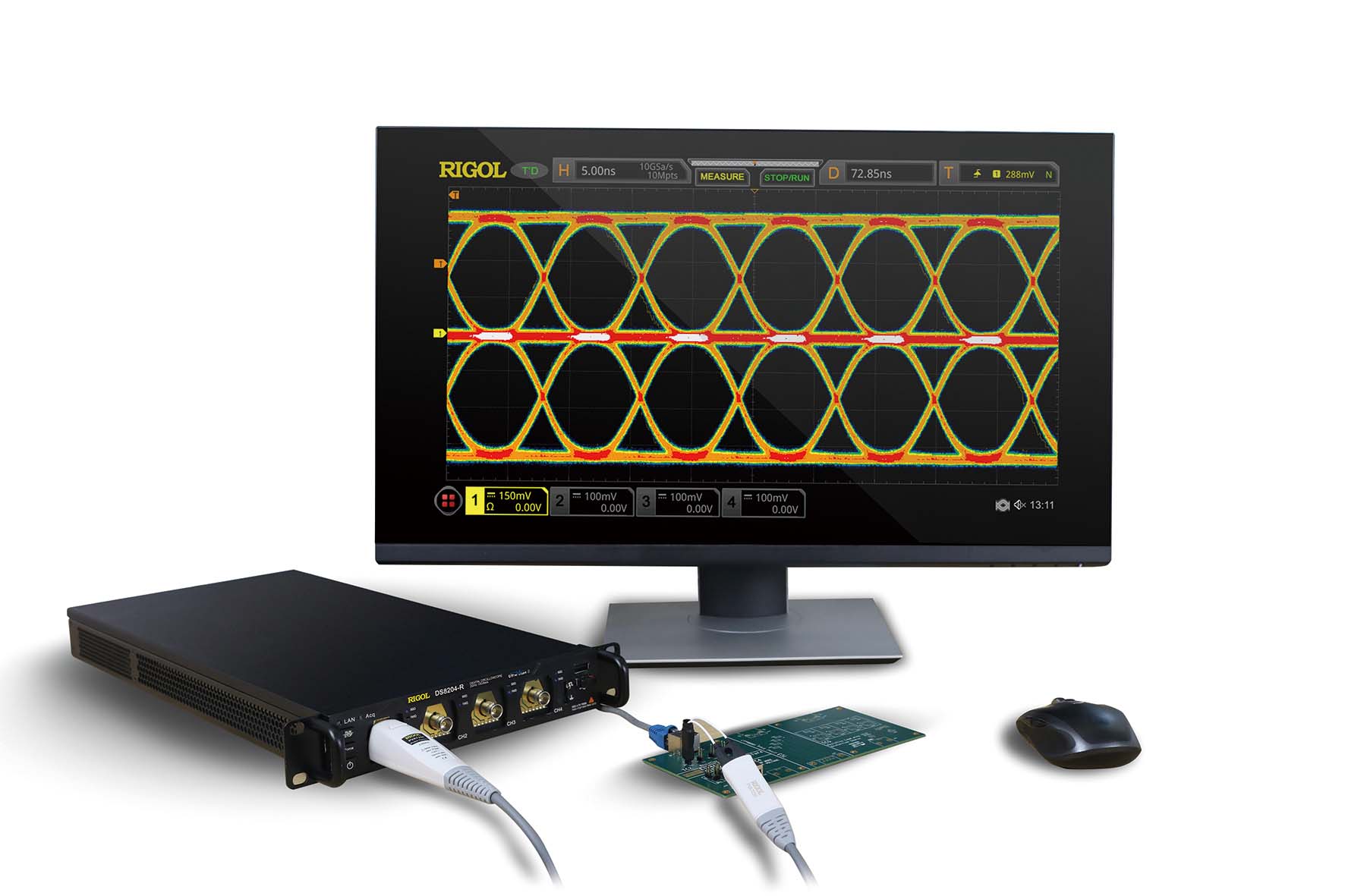

Convenient stand-alone working mode

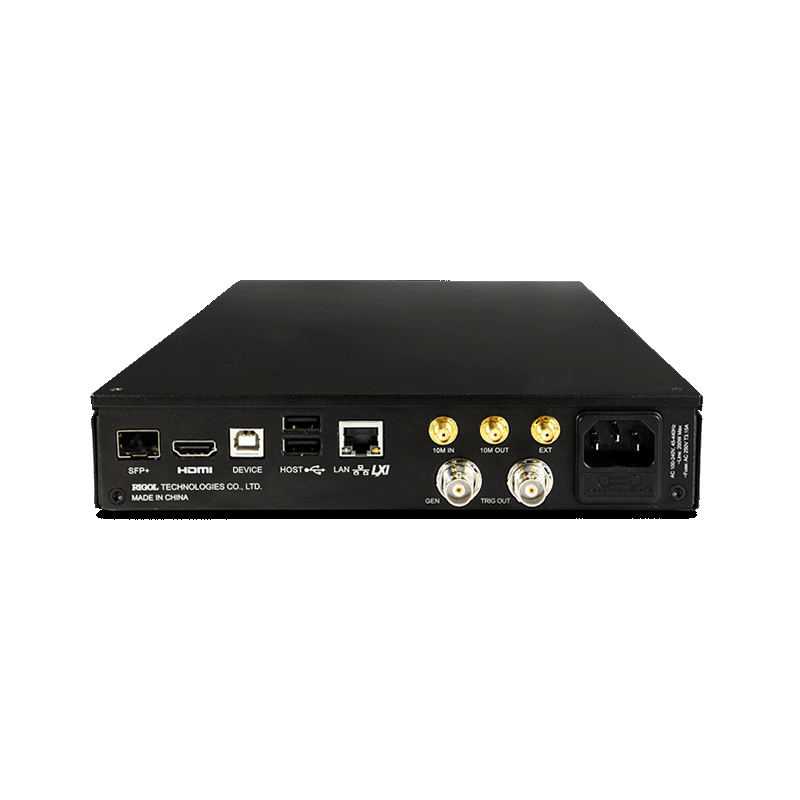

A single device with peripherals can meet traditional oscilloscope applications: connect the display device through the HDMI® interface to view the user interface, connect the mouse through the USB Host interface to click and drag, and connect the keyboard to set numbers or strings.

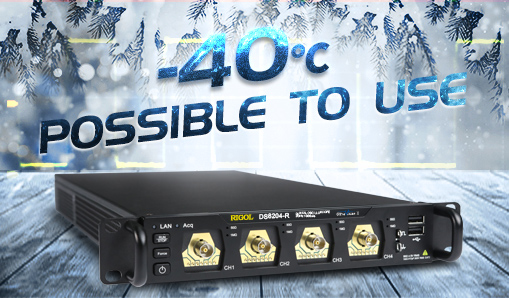

Suitable for low-temperature working environments
No LCD screen, the minimum operating temperature is -40°C, and it can be applied to signal monitoring in special environments.

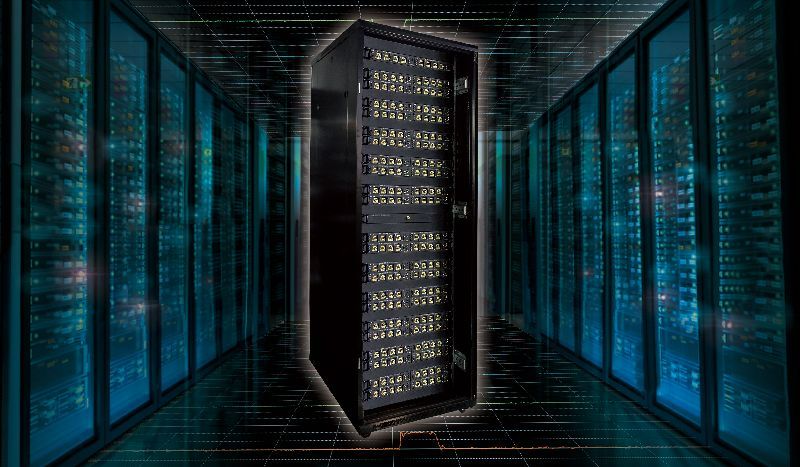

Save the rack space
Half U design helps to save the rack space. 2 units can be installed side by side in a 1U standard rack with a total of 8 channels, which efficiently utilizes valuable rack space

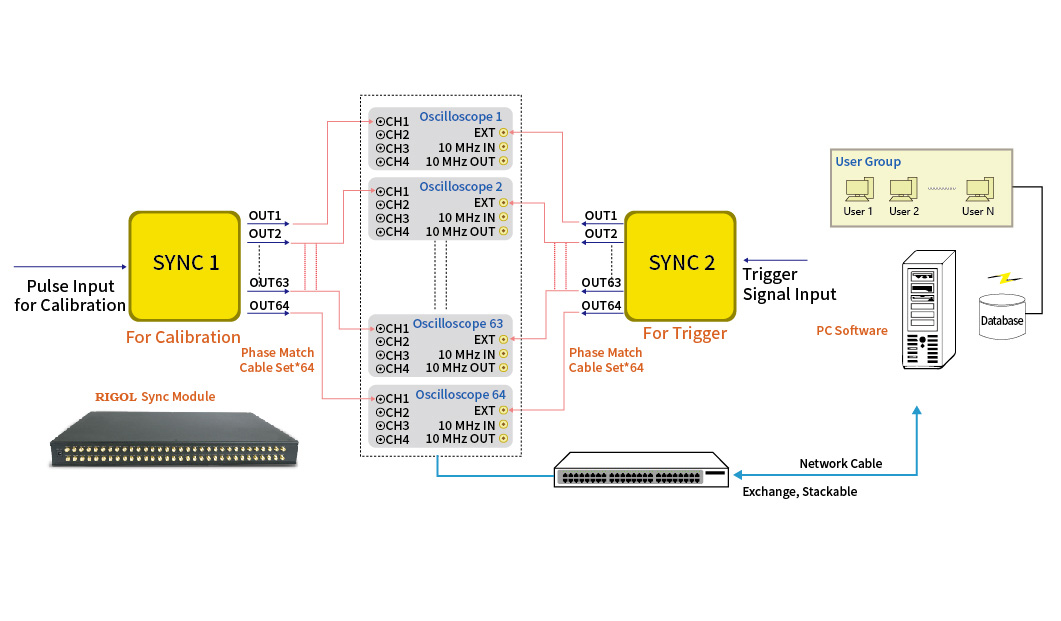

Scalable to 512 channels of synchronous trigger capability
Using the matching synchronous machine, it can provide a multi-machine synchronous trigger scheme, and can realize on-site calibration to ensure the requirements of multi-channel synchronous observation

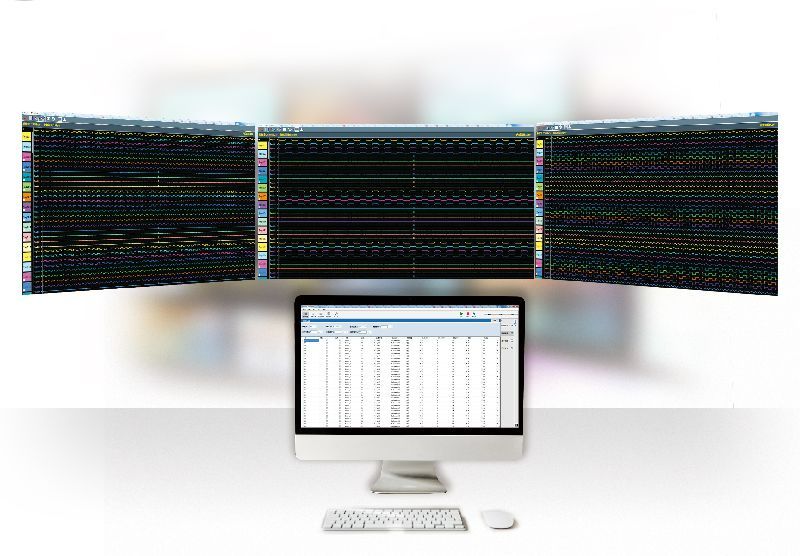

Multi-channel high-speed data acquisition
For multi-channel integration, the optional multi-channel high-speed data acquisition software can meet the configuration of multi-machine and multi-channel, and provide a friendly interface to display the waveforms collected by each channel
DS8000-R
|
Model
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Built-in Signal Source
|
Price
|
|---|---|---|---|---|---|---|---|
|
DS8204-R
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Built-in Signal Source
|
|
|
DS8104-R
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Built-in Signal Source
|
|
|
DS8034-R
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Built-in Signal Source
|
Passive probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
RP6150A
|
1.5GHzPassive low resistance probe（500ohm）
|
$
318(VAT excl.)
|
||
|
RP1300H
|
300MHzHigh voltage probe(2kV)
|
$
232(VAT excl.)
|
||
|
RP3500A
|
500MHzPassive high resistance probe
|
$
217(VAT excl.)
|
||
|
RP1018H
|
18kV 150MHzHigh voltage probe
|
$
985(VAT excl.)
|
Active probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
RP7150
|
1.5GHzActive differential probe
|
$
4487(VAT excl.)
|
||
|
RP7150S
|
1.5GHz Active single-ended probe
|
$
2460(VAT excl.)
|
||
|
PVA7250
|
2.5GHzActive differential probe
|
$
5256(VAT excl.)
|
||
|
RP7080S
|
800MHz Active single-ended probe
|
$
1042(VAT excl.)
|
||
|
RP7080
|
800MHzActive differential probe
|
$
2026(VAT excl.)
|
Current probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
RP1002C
|
1MHz，70ADC
|
$
1736(VAT excl.)
|
||
|
PCA1150
|
Current probe：10MHz，150A
|
$
5819(VAT excl.)
|
||
|
RP1001C
|
300KHz，100A DC
|
$
825(VAT excl.)
|
||
|
PCA2030
|
Current probe：100MHz，30A
|
$
6090(VAT excl.)
|
||
|
PCA1030
|
Current probe：50MHz，30A
|
$
4865(VAT excl.)
|
High-voltage differential probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
PHA0150
|
High voltage differential probe，DC-70MHz，1500V
|
$
799(VAT excl.)
|
||
|
RP1050D
|
High Voltage Differential Probe，50MHz，3.5KV
|
$
651(VAT excl.)
|
||
|
RP1100D
|
High Voltage Differential Probe，100MHz，3.5KV
|
$
753(VAT excl.)
|
||
|
RP1025D
|
High Voltage Differential Probe,25MHz,700V
|
$
449(VAT excl.)
|
||
|
PHA1150
|
High voltage differential probe，DC-100MHz，1500V
|
$
999(VAT excl.)
|
||
|
PHA2150
|
200MHz, 1500V High Voltage Differential Probe
|
$
1590(VAT excl.)
|
|
Model
|
Description
|
Price
|
|---|
|
Model
|
Description
|
Price
|
|---|
|
Name
|
Version
|
Release time
|
|---|---|---|
DS8000-R DataSheet
|
V3.0
|
2025-05-07
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DS8000R UserGuide
|
UGA27103-1110
|
2022-12-29
|
|
DSSYNC64 UserGuide
|
2021-10-29
|
2021-10-29
|
|
RM1011RM1012 RackMountKit
|
RKD27100-1110
|
2021-11-05
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DS8000R QuickGuide
|
QGA27100-1110
|
2021-10-29
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DS8000R ProgrammingGuide
|
PGA27101-1110
|
2021-10-29
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
DS8000R PerformanceVerificationGuide
|
PVA27101-1110
|
2021-10-29
|
|
Name
|
Version
|
Release time
|
|---|---|---|
DS8104-R&DS8204-R(ARM) Firmware
|
v00.01.02.00.00
|
2025-04-10
|
|
DS8034-R Firmware
|
v00.02.00.00.00
|
2025-05-09
|
|
Name
|
Version
|
Release time
|
|---|---|---|
UltraDAQ_Lite
|
v00.01.01.00.00
|
2021-10-29
|
