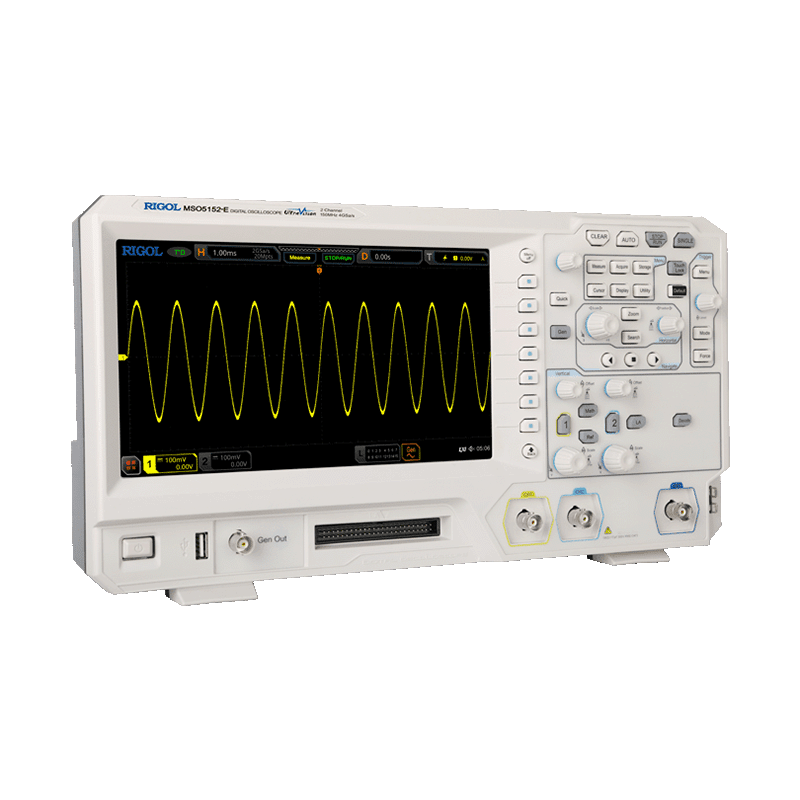

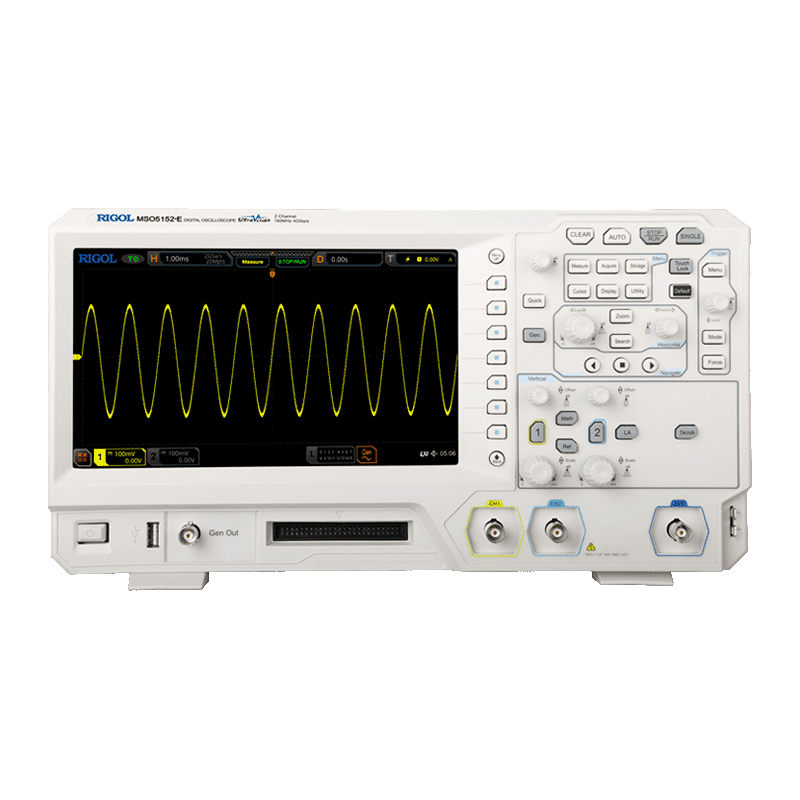

MSO5000-E
The MSO5000 series digital oscilloscopes are high-performance and cost-effective digital oscilloscopes based on RIGOL's UltraVision II technology.
Explore the MSO5000 series digital oscilloscopes

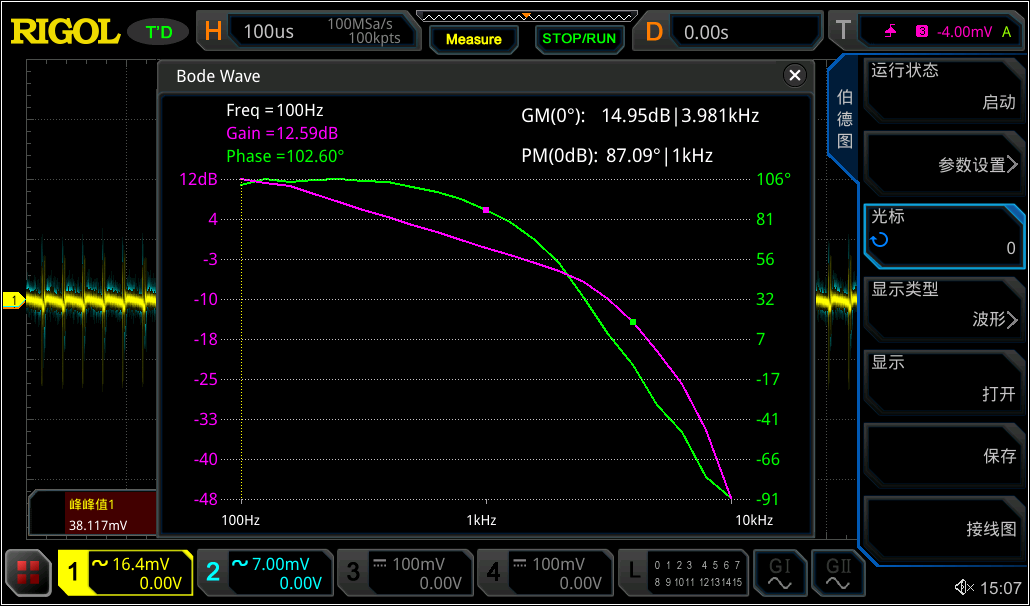

Switching power supply loop analysis function - Bode plot
The MSO5000-E comes standard with a Bode plot function, which can intuitively provide test curves and data, helping engineers quickly determine system stability by analyzing parameters such as phase margin and gain margin.
12-bit vertical resolution
12-bit resolution (212=4096) to see the most signal detail

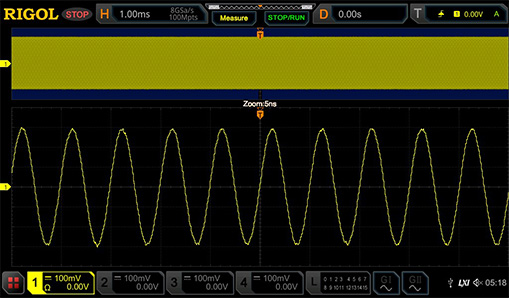

Ultra-high sampling bandwidth ratio
The MSO5000-E series offers a maximum real-time sampling rate of 4 GSa/s at a bandwidth of 150 MHz. The 26-fold sampling bandwidth ratio enables it to take the lead among oscilloscope products in the same class. Meanwhile, it has an ultra-long waveform memory depth of 100 Mpts.
9-inch multi-touch capacitive screen
A 9-inch multi-touch capacitive screen supports various gesture operations, providing users with an optimally enhanced interactive experience.

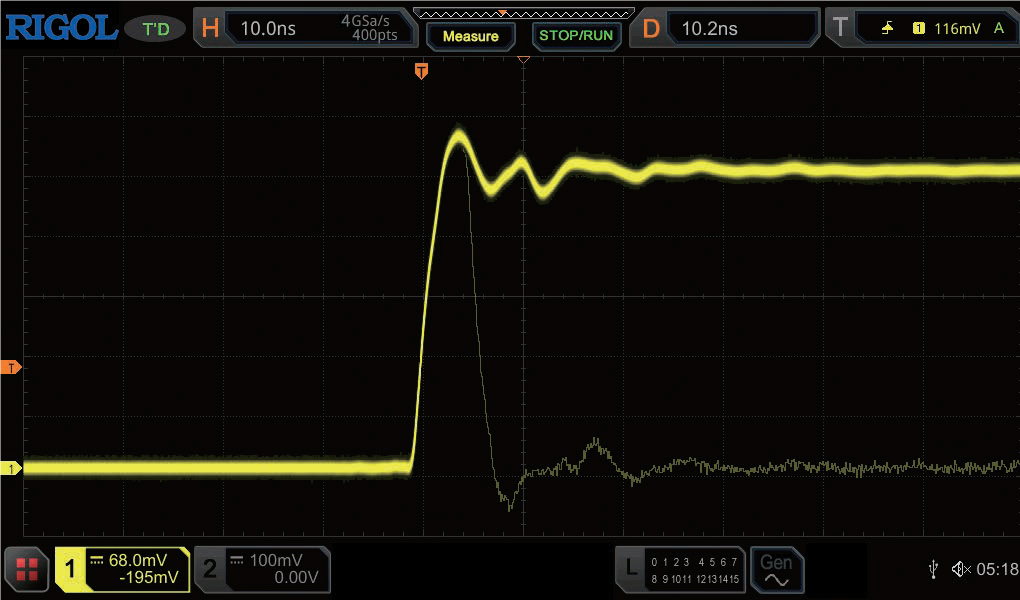

The waveform capture rate is as high as 300,000 times per second.
With a waveform capture rate of up to 300,000 wfms/s, it can quickly detect glitches and other sporadic events in the signal, thereby greatly improving the debugging efficiency of engineers.

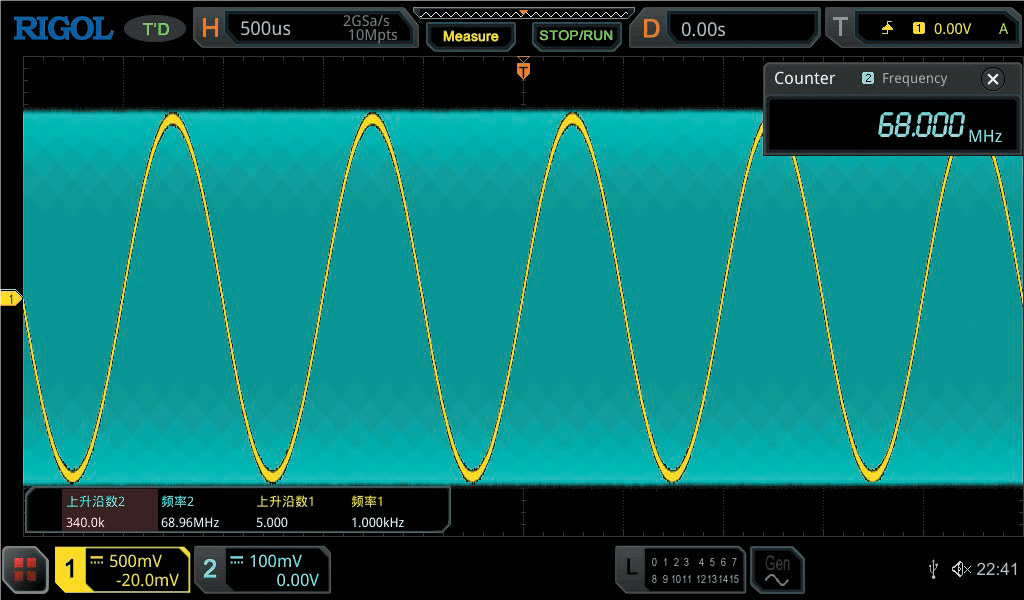

Full memory hardware measurement
Simultaneously observe and accurately measure two signals with a large frequency difference. Full-memory hardware measurement can obtain accurate frequency values from a waveform with 340k rising edges.

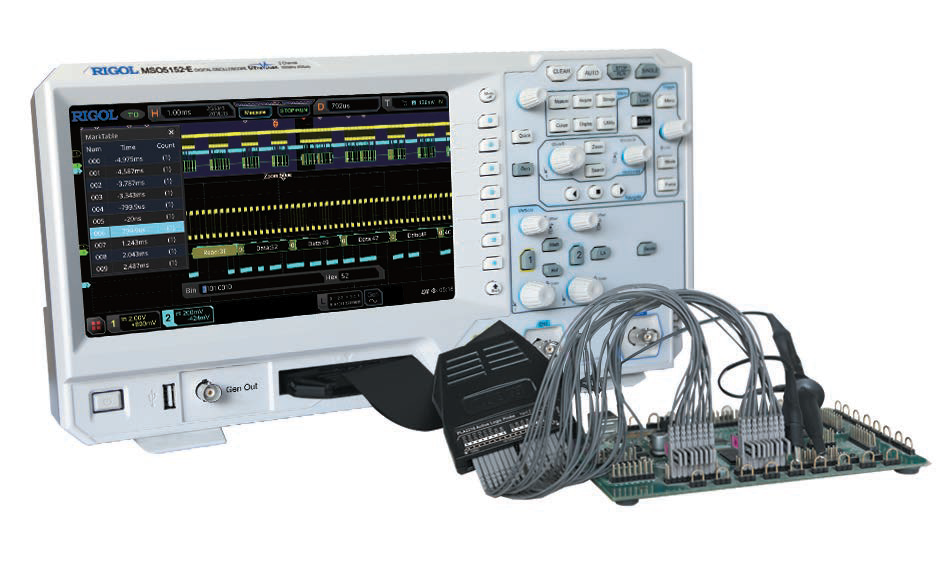

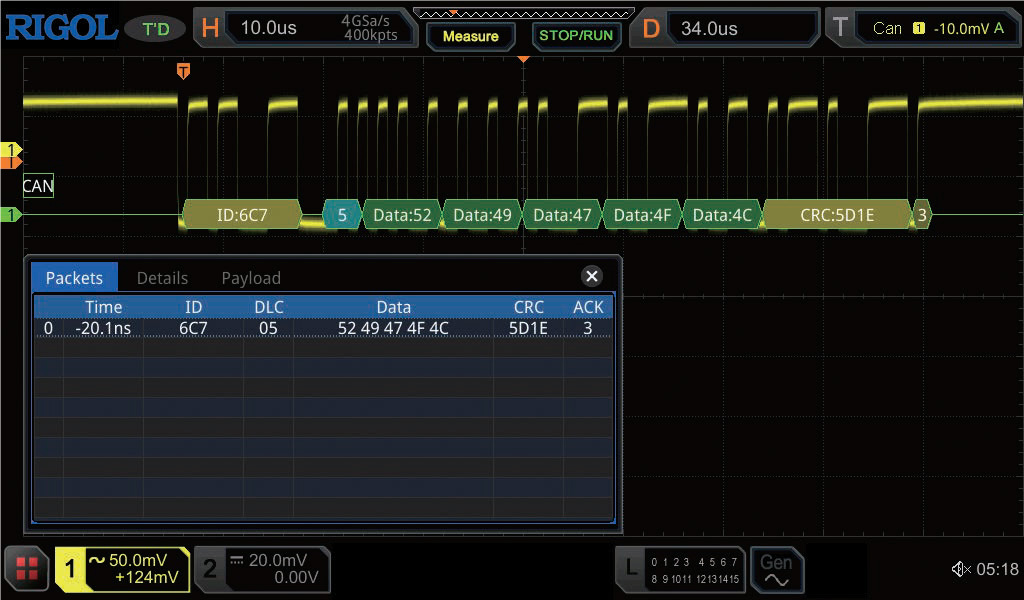

Rich triggers and protocol decoding
Rich serial protocol decoding can decode two serial buses simultaneously. The full-memory data analysis and the display of the decoding event table can help engineers quickly discover system faults and locate the error code waveforms, greatly improving the debugging efficiency of the overall system signals.

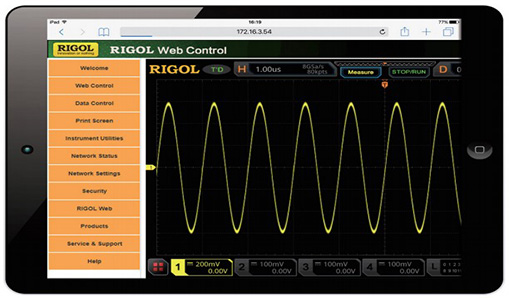

Convenient Web Control remote control
Users only need to enter the IP address of the oscilloscope in the address bar of a web browser to open the Web Control software and easily achieve remote control.
MSO5000-E
|
Model
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Digital Channels
|
Built-in Signal Source
|
Price
|
|---|---|---|---|---|---|---|---|---|
|
MSO5152-E
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Digital Channels
|
Built-in Signal Source
|
Passive probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
RP1300H
|
300MHzHigh voltage probe(2kV)
|
$
232(VAT excl.)
|
||
|
RP1010H
|
10kV 50MHzHigh voltage probe
|
$
492(VAT excl.)
|
||
|
PVP2350
|
350MHz, 10:1/1:1, passive high resistance probe (single strip)
|
$
55(VAT excl.)
|
||
|
RP1018H
|
18kV 150MHzHigh voltage probe
|
$
985(VAT excl.)
|
Current probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
RP1002C
|
1MHz，70ADC
|
$
1736(VAT excl.)
|
||
|
RP1001C
|
300KHz，100A DC
|
$
825(VAT excl.)
|
||
|
RP1004C
|
100MHz,30A
|
$
5049(VAT excl.)
|
||
|
RP1000P
|
4CHPower Adapter
|
$
1577(VAT excl.)
|
|
|
|
RP1005C
|
10MHz,150A
|
$
4418(VAT excl.)
|
||
|
RP1003C
|
50MHz,30A
|
$
3471(VAT excl.)
|
High-voltage differential probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
PHA0150
|
High voltage differential probe，DC-70MHz，1500V
|
$
799(VAT excl.)
|
||
|
RP1050D
|
High Voltage Differential Probe，50MHz，3.5KV
|
$
651(VAT excl.)
|
||
|
RP1100D
|
High Voltage Differential Probe，100MHz，3.5KV
|
$
753(VAT excl.)
|
||
|
RP1025D
|
High Voltage Differential Probe,25MHz,700V
|
$
449(VAT excl.)
|
||
|
PHA1150
|
High voltage differential probe，DC-100MHz，1500V
|
$
999(VAT excl.)
|
||
|
PHA2150
|
200MHz, 1500V High Voltage Differential Probe
|
$
1590(VAT excl.)
|
|
